MIL-DTL-29183/2B
Self-closin g weatherproof
cov er for circuit breaker
Carrying handle
access.
Inw ard sloping
connector
p anel face
L ow base mount
p rofile
Fram e base
constru ction
A . Circular frame base
B . Trapezoid frame base
C . "A" frame base
D . Extended "A" frame base
N O T ES:
1 . These drawings are for reference only and illustrate some of the features required by the
specification of which it is a part. It is not intended that these drawings limit the design
except for the requirements specified herein.
2 . Base mount type shall be similar to figure 2A, or 2B, or 2C, or 2D.
3 . Carrying handle, inward sloping connector panel face(s), self-closing cover, frame
b ase construction, and low base mount profile are required.

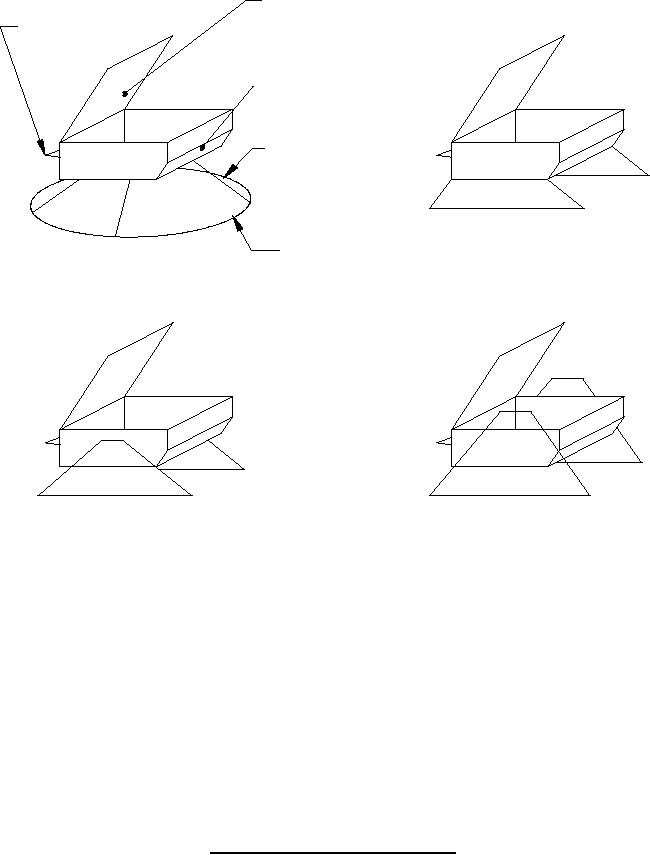

FIGURE 2. Distribution panel design features.
