MIL-DTL-22438/2C

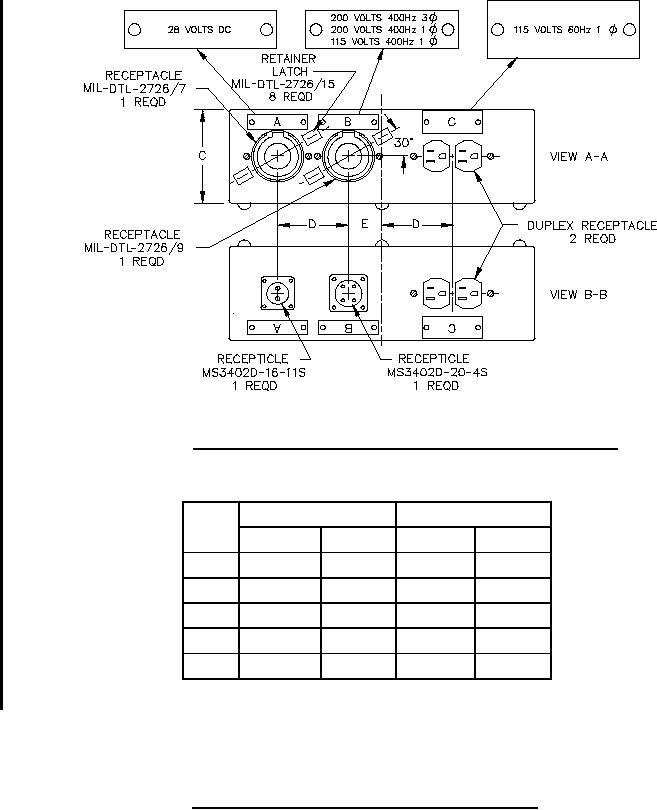

FIGURE 1. Panel receptacle, enclosed, electrical and electronic - continued.
Inches
mm
Ltr
Min
Max
Min
Max
A
13.109
13.141
332.969
333.781
B
8.859
8.891
225.019
225.831
C
3.859
3.891
98.019
98.831
D
3.047
3.079
77.394
78.207
E
1.515
1.547
38.481
39.294
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are plus or minus .016 inch (0.406 mm).
FIGURE 1. Panel receptacle, enclosed, electrical and electronic - Continued.
