MIL-DTL-22438/1C

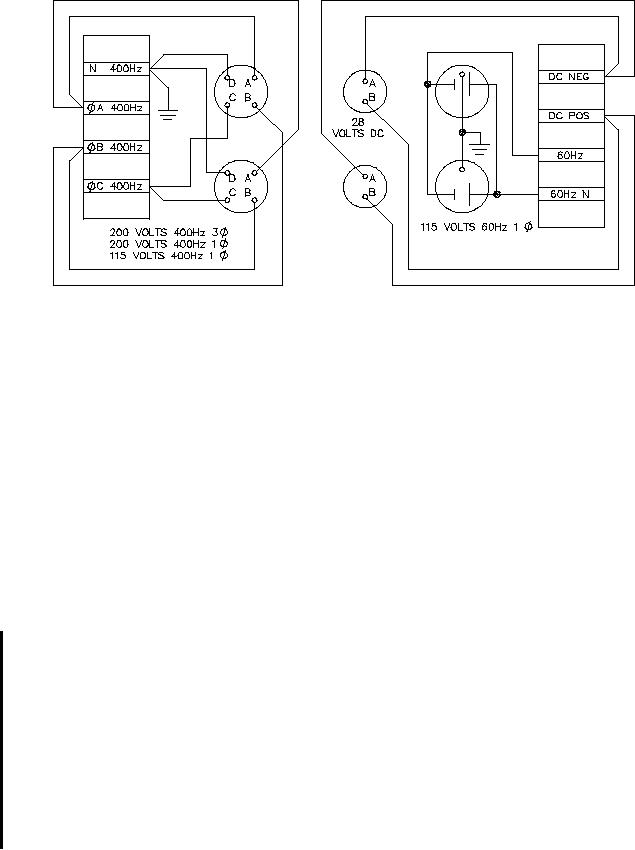

FIGURE 2. Wiring diagram.
REQUIREMENTS:
Interface and physical dimensions: See figures 1 and 2.
Panel material: Steel, 12 gage.
Mounting: Designed for mounting in an electrical and electronic test and maintenance table.
Electrical:
Bus connection terminal posts: All split-bolt type. DC circuit posts shall aaccept maximum wire size
AWG-2. AC and ground circuit posts shall accept maximum wire size AWG-8.
Interior wiring: Type D-12 in accordance with MIL-DTL-16878/3.
Part or Identifying Number (PIN): The PIN shall be M22438/1-001.
Referenced documents. In addition to MIL-DTL-22438, this document references the following:
The margins of this specification are marked with vertical lines to indicate where changes from the
previous issue were made. This was done as a convenience only and the Government assumes no
liability whatsoever for any inaccuracies in these notations. Bidders and contractors are cautioned to
evaluate the requirements of this document based on the entire content irrespective of the marginal
notations and relationship to the last previous issue.
