MIL-DTL-22438/1C
Inches
mm
Ltr
Min
Max
Min
Max
A
15.859
15.891
402.819
403.631
B
1.980
2.016
50.292
51.206
C
7.859
7.891
199.619
200.431
D
.422
.454
10.719
11.532
E
4.984
5.016
126.594
127.406
F
3.484
3.516
88.494
89.306
G
.265
.297
6.731
7.544
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are plus or minus .016 inch (0.406 mm).

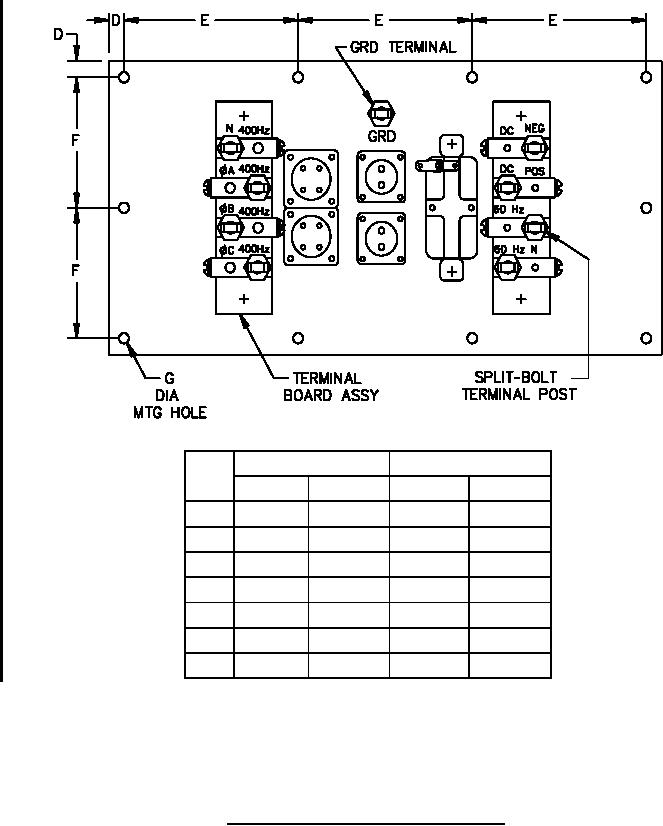

FIGURE 1. Panel receptacle, electrical and electronic - Continued.
2
