MIL-DTL-16036M(SH)

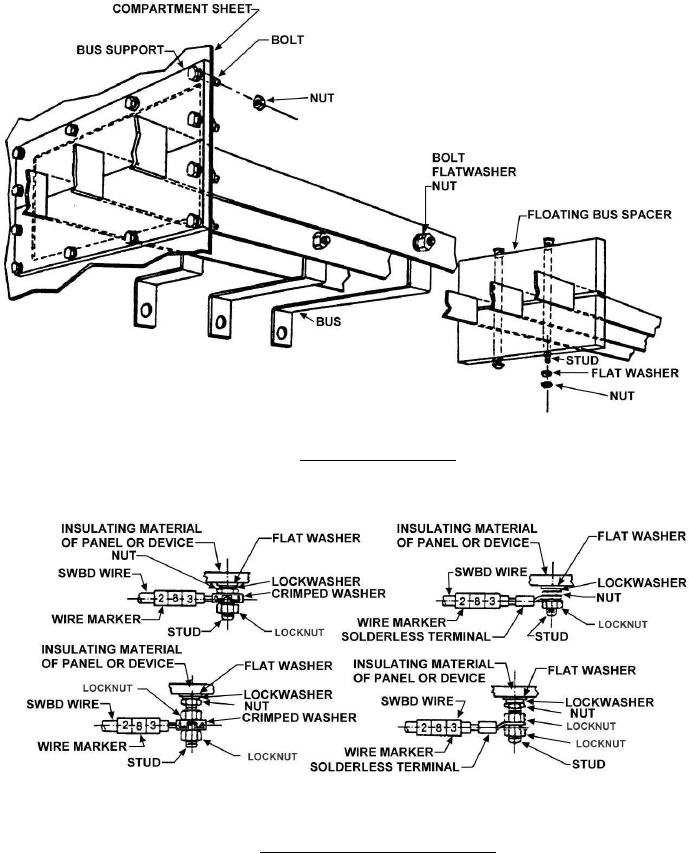

FIGURE 16. Typical bus bar mounting.
NOTE: Markings may be stamped on wire terminals or, if terminals are too small to permit stamping, synthetic resin
tubing of MIL-I-631, Type F, Grade A, or fiber tags shall be used.
FIGURE 17. Typical cable marking and connections.
80
