MIL-DTL-16036M(SH)
NOTES:
1. Scheme "A" where watertight trough can be mounted behind switchboard door.
2. Scheme "B" where watertight trough cannot be mounted behind switchboard door.
3. Open area at top of watertight trough shall be equal to the area of ventilation provided by the louvers, if spraytight
baffle was not provided.
4. The combined open area at the top and bottom of the spray shield shall be equal to the area of ventilation provided
by the louvers.
5. Area of ventilation to be provided by louvers on watertight trough and open area on switchboard door shall be
equal to the area of ventilation provided by the louvers, if spraytight baffle was not provided.
6. The number of thumbscrews used for the hinged cover assembly shall be the minimum necessary for firm
compression.
7. The gasket used for covers and panel assembly shall be Class 2, Grade 60, and shall conform to MIL-PRF-6855.

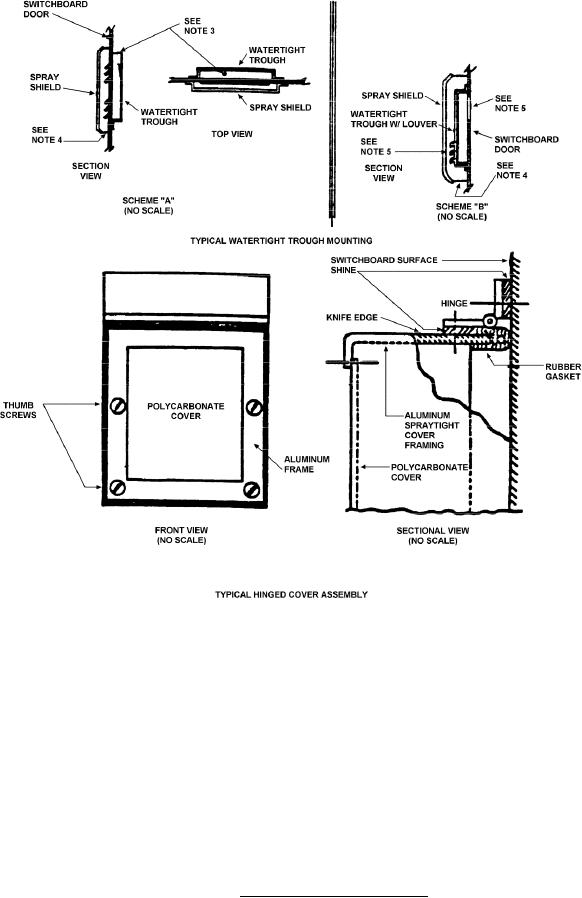

FIGURE 12. Typical spraytight construction.
77
